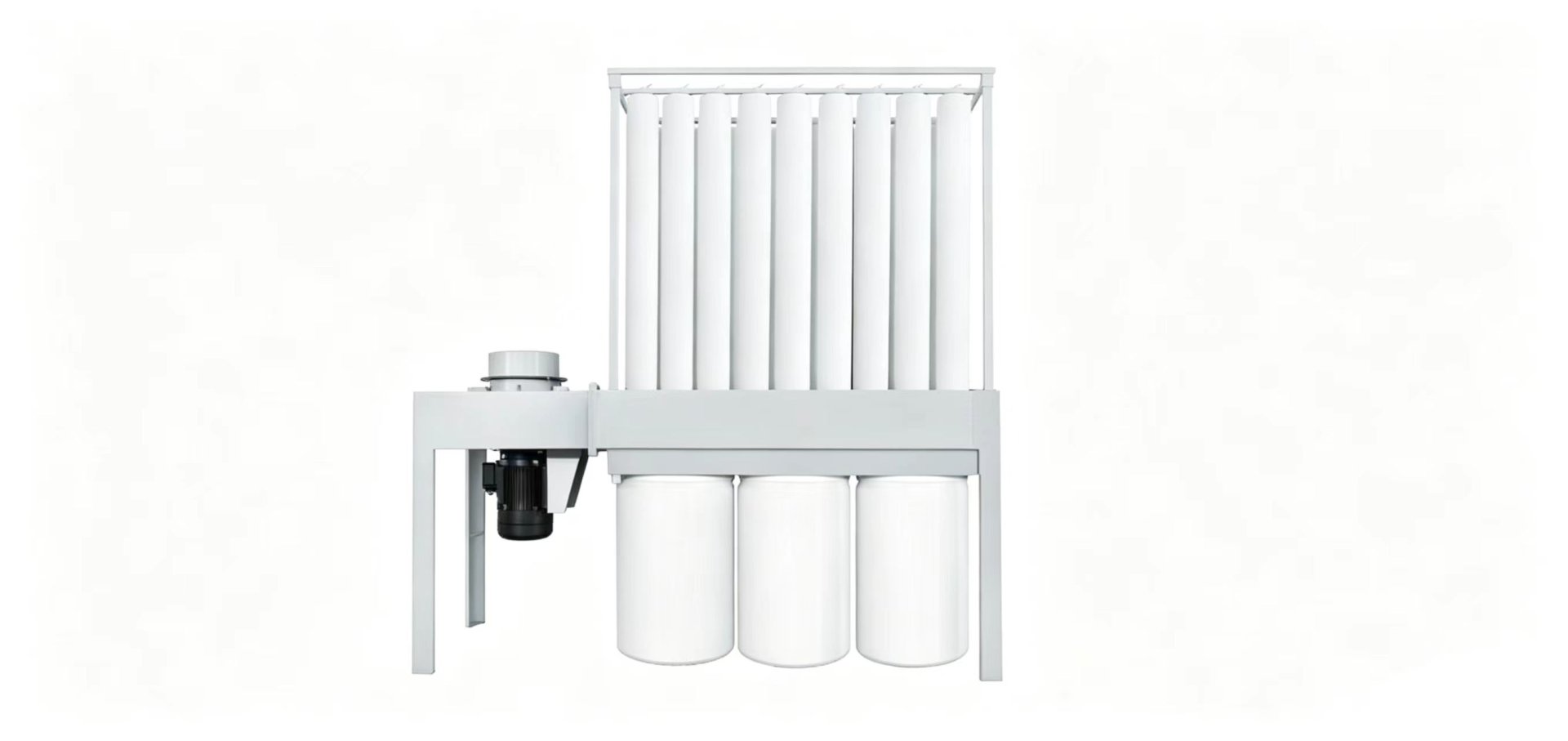

HY-9011(36)

MODEL	HY-9011(36)
功率 Motor(kw)	11kw
风扇直径 Fan diameter(mm)	660
吸风口直径 Inlet diameter(mm)	5x150
风量 Air flow	15000
过滤袋上部尺寸 Filter bag dia-upper(mm)	175x1950x36
集尘袋下部尺寸 Collecting bag dia-lower(mm)	630x1000X3
总尺寸 Overall dimension (mm)	2920x1040x1000
包装尺寸 Packing size(mm)	2980x1100x1050
净重 Net weight (kg)	460
毛重 Gross weight(kg)	530

Real Live Photos

Our central bag dust collector is specially designed for medium and large factories. It boasts powerful suction and delivers stable dust removal performance for large-scale workshops. We can also provide customized air duct design based on the actual conditions of your factory.
