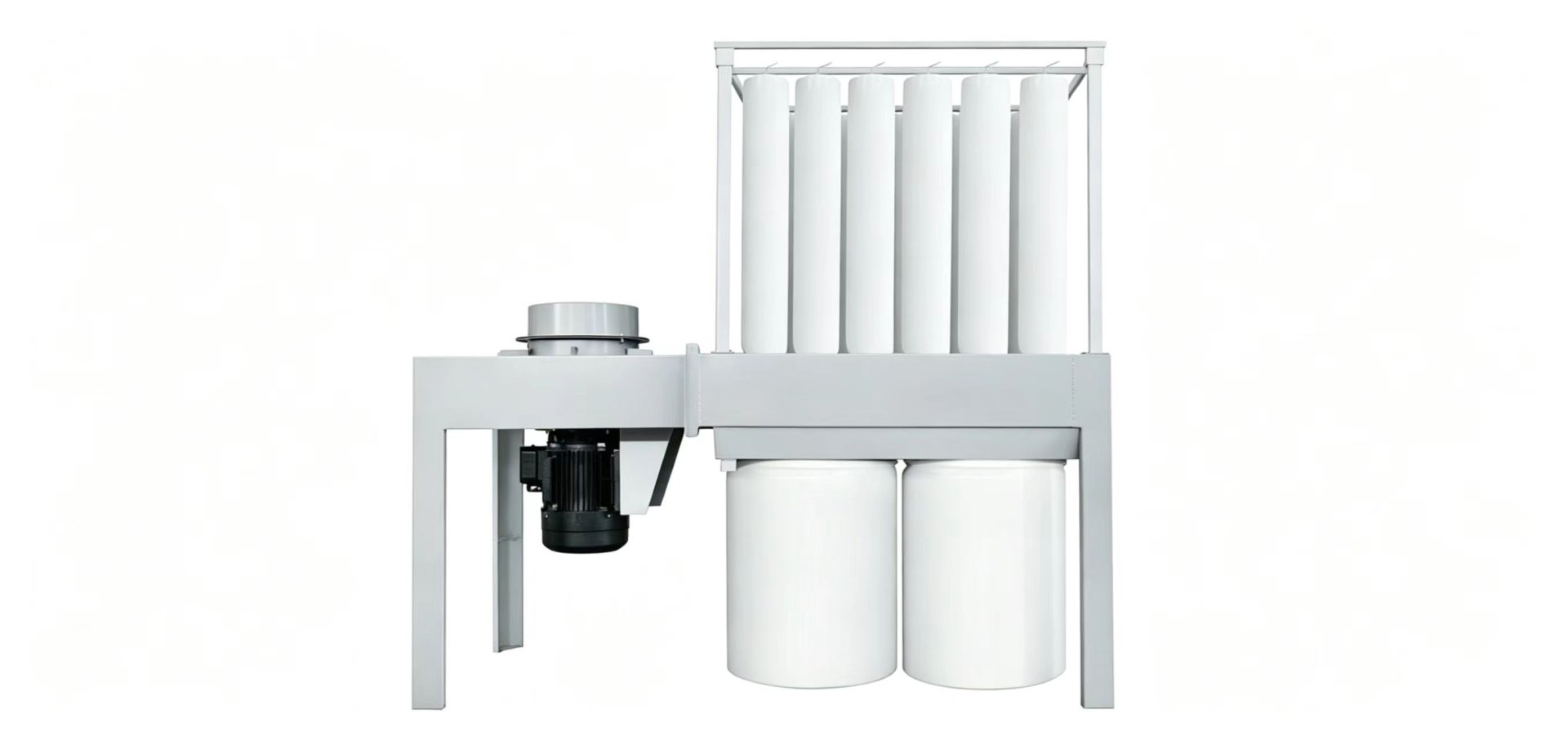

HY-9011(24)

MODEL	HY-9011(24)
功率 Motor(kw)	11kw
风扇直径 Fan diameter(mm)	600
吸风口直径 Inlet diameter(mm)	5x150
风量 Air flow	12000
过滤袋上部尺寸 Filter bag dia-upper(mm)	175x1950x24
集尘袋下部尺寸 Collecting bag dia-lower(mm)	630x1000X2
总尺寸 Overall dimension (mm)	2400x1100x3950
包装尺寸 Packing size(mm)	2400x1100x1050
净重 Net weight (kg)	390
毛重 Gross weight(kg)	460

Real Live Photos

Our central bag dust collector is specially designed for medium and large factories. It boasts powerful suction and delivers stable dust removal performance for large-scale workshops. We can also provide customized air duct design based on the actual conditions of your factory.
